Sea Seal 180B
Sea Seal 180B

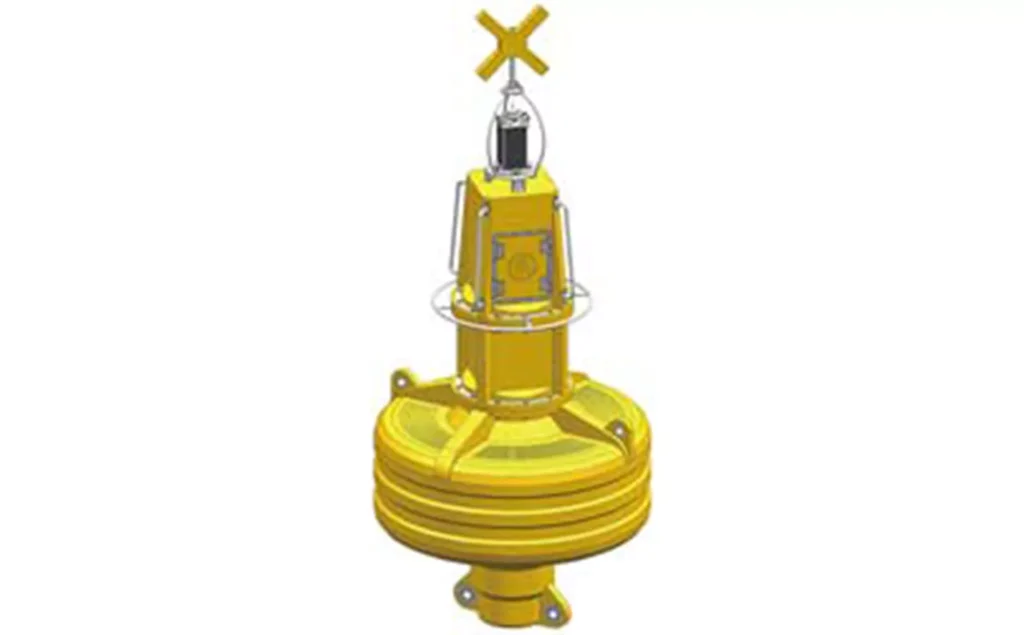

The Sea Seal 180B Marine Navigation Buoy is engineered for reliable operation in harsh marine environments across the UAE and GCC region. Designed according to IALA recommendations, it provides dependable channel marking, hazard indication, and navigation safety for ports, offshore installations, and coastal waterways.
The buoy is manufactured from UV20‑stabilized Linear Low‑Density Polyethylene (LLDPE) and reinforced with a 316L stainless steel internal skeleton, ensuring exceptional durability, corrosion resistance, and long service life in high‑salinity Gulf waters.
Key Features
- UV20 LLDPE body – high impact resistance
- SS316L skeleton – corrosion-resistant structure
- High visibility – IALA compliant colors
- Foam filled – reliable buoyancy
- Radar reflector – 6–10 m² detection
- Modular design – easy transport & installation
- Low maintenance – no painting required
Applications
- Port and harbor channel marking
- Offshore oil & gas installations
- Coastal navigation aids
- Hazard and obstruction marking
- Marine construction zones
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Sea Seal 180B |
| Float Diameter | 1.8 m |
| Visible Area | 2.5 m² |
| Total Height | 4259 mm |
| Focal Height | 2680 mm |
| Float Material | LLDPE |
| UV Protection | UV20 |
| Internal Structure | Stainless Steel 316L |
| Float Filling | Closed‑cell Polyurethane |
| Standard Colours | Red / Green / Yellow / White (IALA) |
