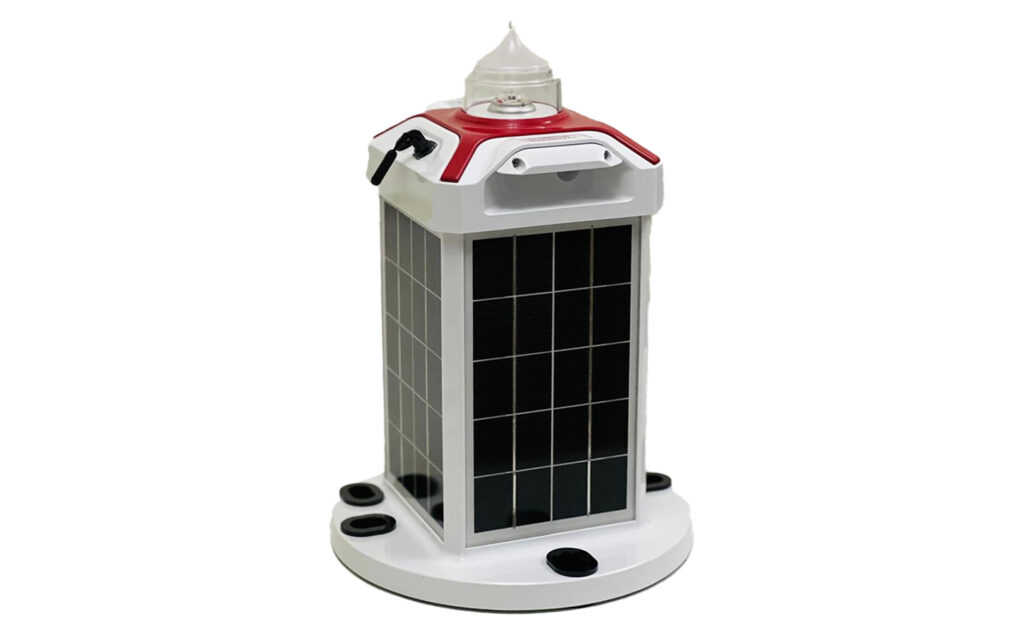

Alkaid 3A Marine Lantern
Smart Marine Lantern with Advanced Technology for Aids to Navigation (AtoN)
The Alkaid 3A Marine Lantern from the Alkaid Series represents the next generation of smart marine navigation lighting. Designed with cutting-edge technology and engineered for durability, this self-contained LED lantern delivers high performance, long lifespan, and intelligent connectivity for modern Aids to Navigation (AtoN) systems.
Built with premium materials and manufactured entirely in our facility, the Alkaid 3A provides reliable operation in harsh marine environments, backed by a 5-year full warranty
Key Features
- High efficiency LED lighting system with visibility 3-5nm (T:0.74)
- Quick plug-in lithium-ion battery pack for easy replacement
- Bluetooth 5.2 connectivity
- GPS synchronization
- Designed and manufactured according to IALA recommendations
Typical Applications

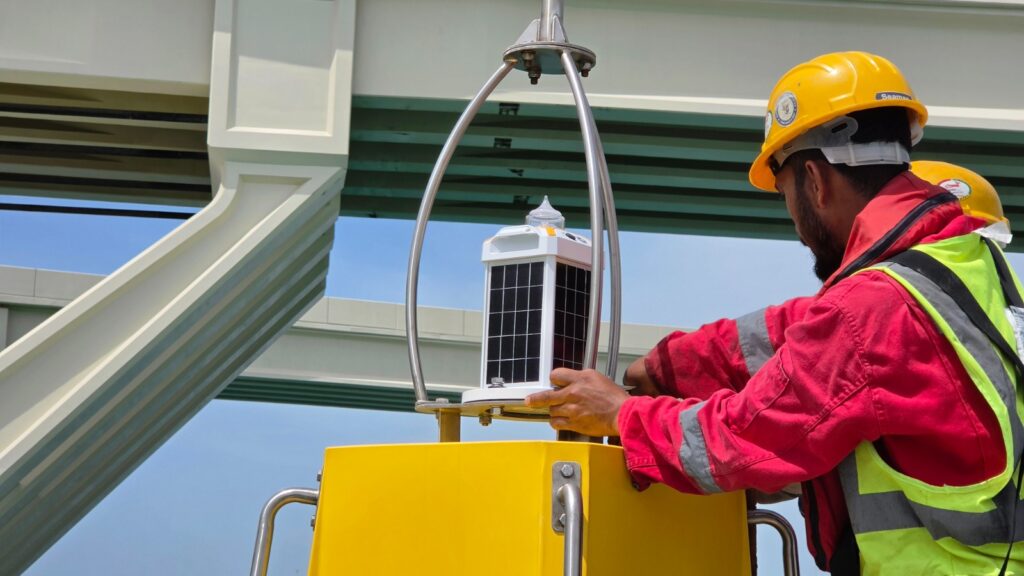

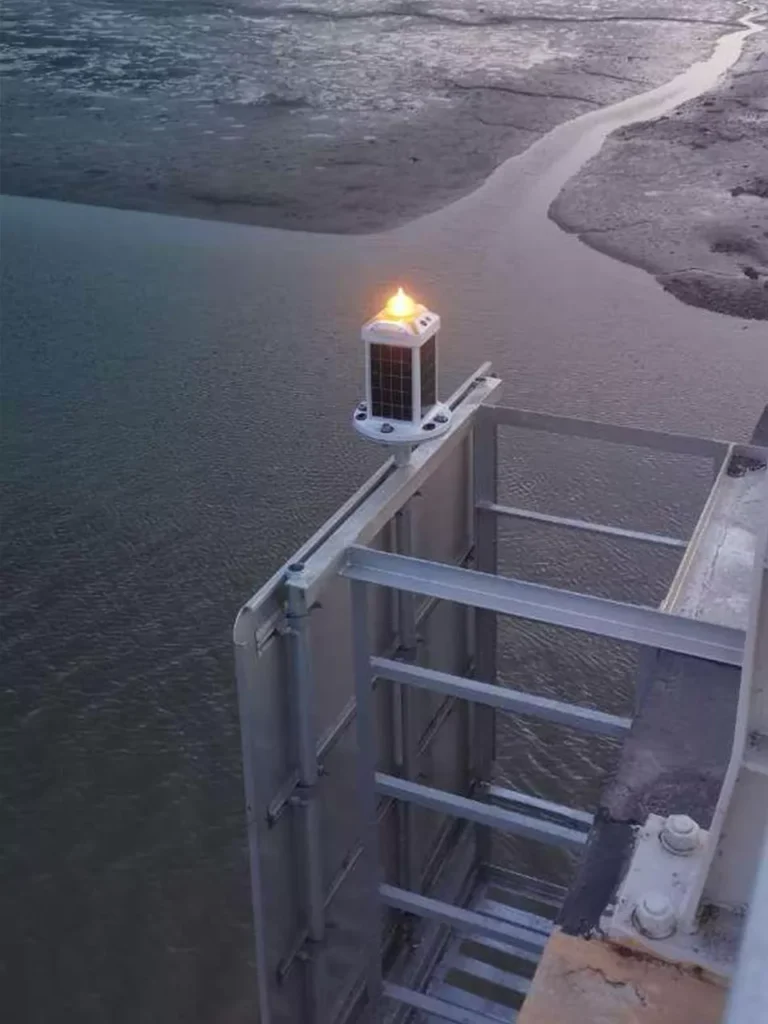

- Marine Aids to Navigation (AtoN)

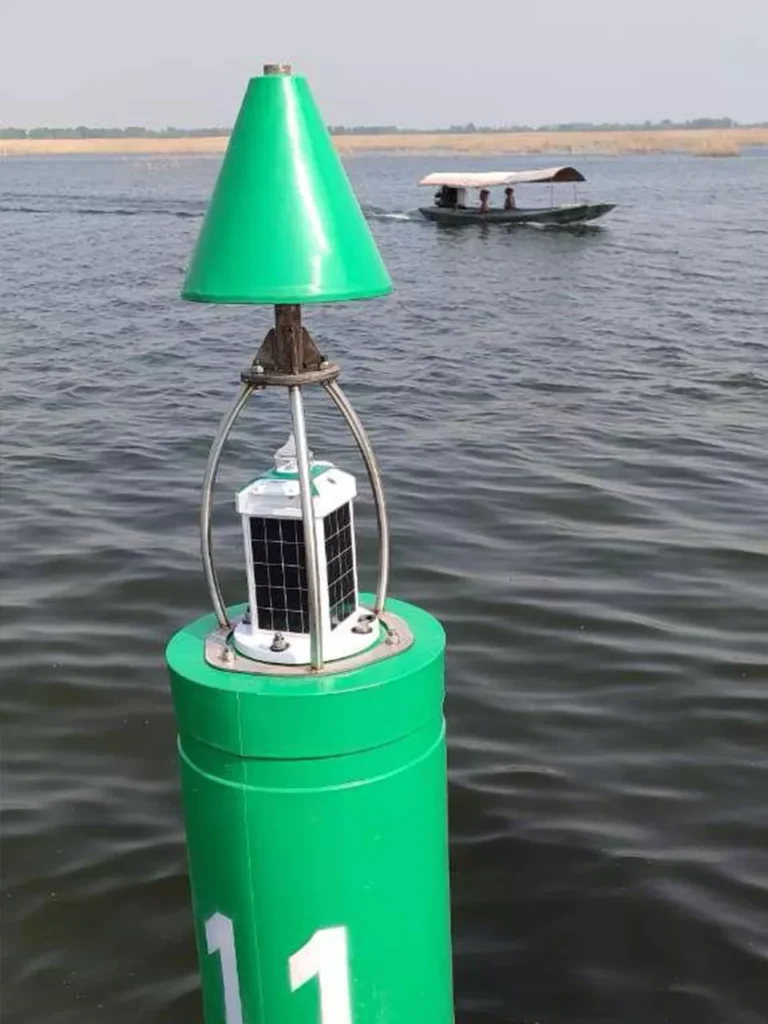

- Buoys and beacons
- Harbor and port navigation
- Coastal and offshore navigation
- Rivers and inland waterways
- Bridge and channel marking
Typical Applications
- Marine Aids to Navigation (AtoN)
- Buoys and beacons
- Harbor and port navigation
- Coastal and offshore navigation
- Rivers and inland waterways
- Bridge and channel marking
Technical Specifications
| Parameter | Specification |
|---|---|
| Luminous Range | 3-5nm (T:0.74) |
| LEDs | Ultra-bright parallel LED diodes with 100,000+ hours lifespan |
| Optical Lens | Polycarbonate resin (PC), UV stabilised, 90% transparency |
| Vertical Divergence | > 8° |
| Colour Options | White, Green, Red, Yellow, Blue |
| Flasher Circuit | Smart Technology |
| Power Consumption | Ultra-low power |
| Flash Rhythm | IALA 256 + 744 user-customisable rhythms |
| Battery Pack | Plug-in Lithium-ion battery packs: 15Ah / 30Ah / 45Ah |
| Solar Panel Power | Monocrystalline 3.5W × 4 (14W total) |
| Synchronization | GPS |
| Short-Distance Communication | Bluetooth 5.2 |
| Long-Distance Communication | GPRS, GSM, CDMA, NB-IoT |
| Life Span | 15+ years |
| Base | Polycarbonate resin |
| Fixing | 200 mm diameter (3 or 4 bolts – Ø14 mm) |
