Alkaid 2A Marine Lantern

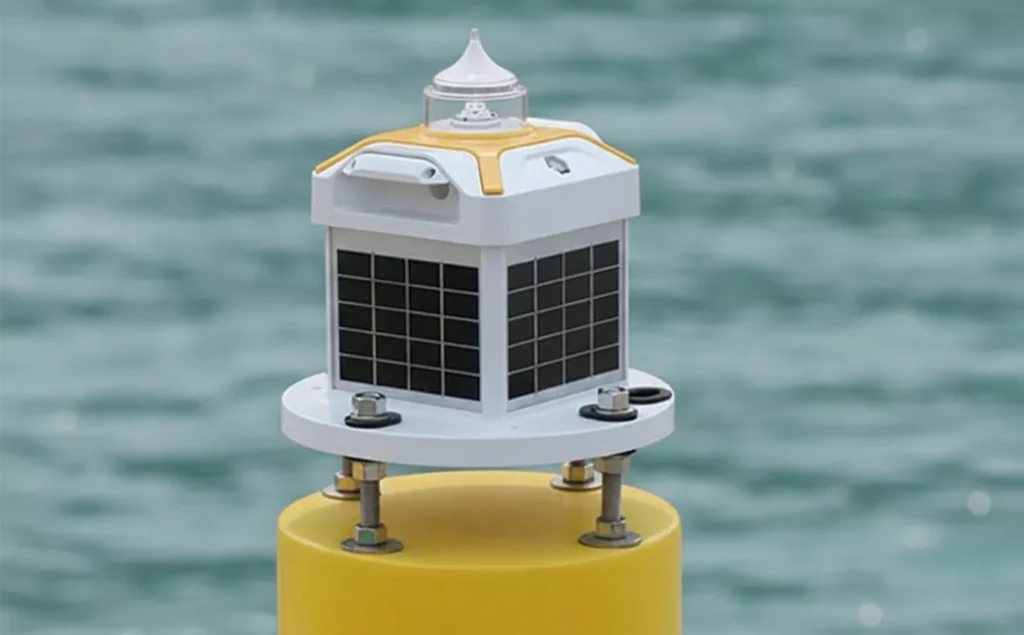

Tenyn Ocean Alkaid 2A Self Contained Marine Lantern. Solar-Powered LED Navigation Light for Marine Aids to Navigation. The Alkaid 2A Marine Lantern is a high-performance compact solar powered LED navigation light designed for reliable marine aids to navigation (AtoN). Built for harsh marine environments, the lantern integrates a high efficiency LED light source, precision optical lens, solar panel, battery, intelligent control unit and communication module into a compact and durable housing.
The lantern provides excellent resistance to salt spray, humidity, corrosion and UV radiation, making it ideal for deployment in coastal waters, offshore installations, rivers, lakes, ports and harbors. The lantern is available in green, red, yellow and white with chromaticity and luminous intensity fully compliant with IALA standards to meet international navigation safety requirements. Engineered with a compact integrated structure, the Alkaid 2A lantern ensures high reliability, easy installation and low maintenance
Key Features
Solar Powered & Energy Efficient
The integrated solar charging system and high density lithium battery provide reliable, long-term operation with minimal maintenance, making the lantern ideal for remote or unattended locations.
Magnetic Switch Control
A magnetic switch design allows users to turn the lantern on or off without opening the enclosure, ensuring quick, safe and efficient operation while maintaining waterproof integrity.
Bluetooth Configuration via Mobile App
Built-in Bluetooth connectivity enables easy configuration, diagnostics and maintenance using a dedicated smartphone or tablet application, improving operational efficiency in the field.
Modular Battery Design
The quick-plug battery module system allows flexible configuration of battery capacity according to light intensity and operational endurance requirements.
Typical Applications

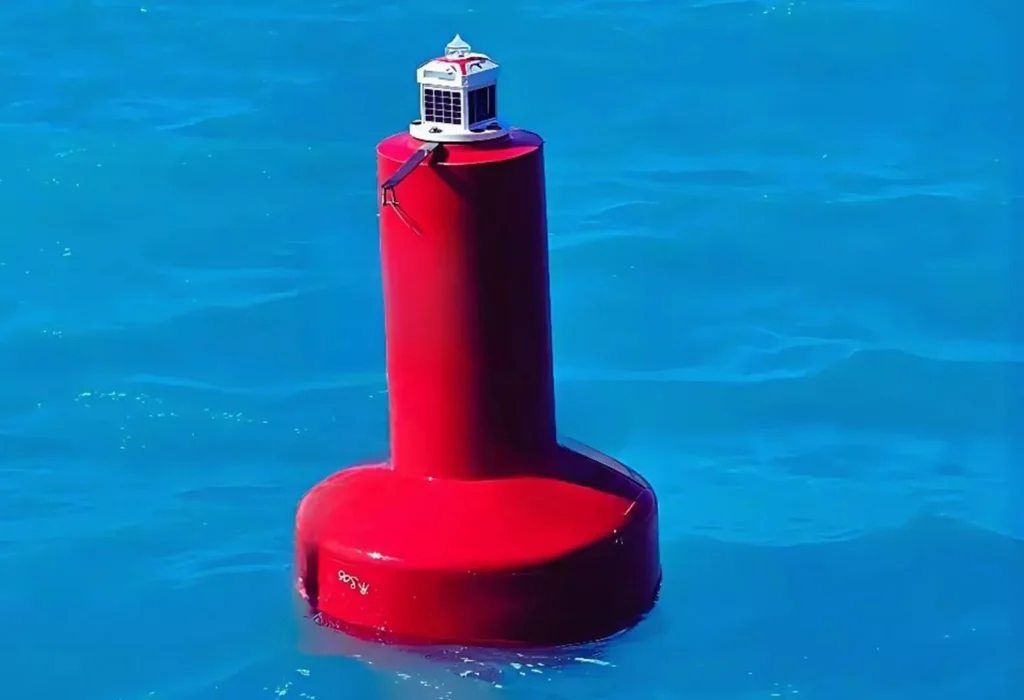

- Marine Aids to Navigation (AtoN)
- Buoys and beacons
- Harbor and port navigation
- Coastal and offshore navigation
- Rivers and inland waterways
- Bridge and channel marking
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Range | Up to 3nm (T = 0.74) |
| Light Source | Ultra-bright LED, service life up to 100,000 hours |
| Vertical Divergence | ≥ 8° |
| Horizontal Divergence | 360° |
| Available Colors | Red, Green, Yellow, White, Blue |
| Light Characteristics | IALA 256 |
| Solar Panel Power | 1.5 W × 4 (6 W total) |
| Power Consumption | 3.5 Wh |
| Nominal Voltage | DC 3.6 V |
| Short-Range Communication | Bluetooth |
| Housing Material | PC (Polycarbonate) |
